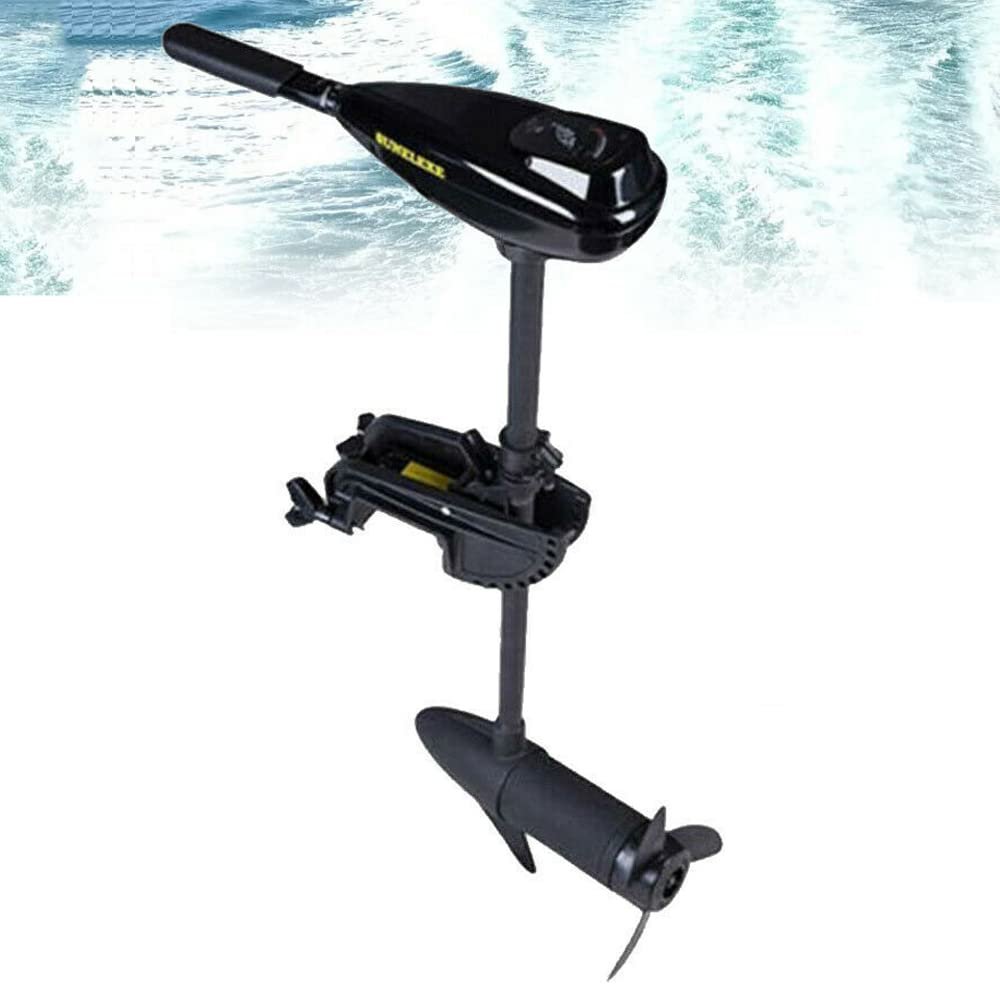

12V 40LBS Electric Trolling Motor Portable Outboard Boat Motor,1700 R/min Electric Outboard Trolling Motor Engine for Inflatable Kayaks Dinghy Canoe(1700 R/min,Retractable Handle,Brushed Motor)

Description

• SPECIFICATIONSModel: L40, Speed Control: F5-R2, Motor Type: Brushed Motor, Rated Voltage (V): 12, Rated Speed (rev/min): 1700, Rated Current (A): 34, Rated Power ( W): 408, Top Speed (km/h): 6, Noise: 50db, Battery Model: 12V 100A Battery, Net Weight: 7.8kg/17.2lbs, Propeller Model: 3 Blades, 7.6*22.9cm/3*9in, Rod Length: 76 cm / 30 inches.
• PROFESSIONAL HIGH QUALITY DESIGNThe trolling motor is made of pure copper as a whole, which has excellent electrical conductivity, thermal conductivity, ductility and corrosion resistance. Main pole: Made of aluminum, its light weight will not add to the overall weight and driving difficulty of your boat. Suspension bracket: Made of high-strength aluminum alloy, it can ensure that the bracket will not be deformed after repeated disassembly and assembly.
• SAFE AND ARBITRARY ADJUSTMENTThe fixed tiller has 5 forward and 3 reverse speeds, which can overcome the huge water resistance, switch speed and change direction smoothly. Its angle, gear and height can be adjusted freely. The streamlined fins are designed to protect the propellers at high speeds when they collide with underwater objects.
• REAL-TIME POWER MONITORINGThe top of the thruster displays the battery power in real time, allowing you to check the power status at any time, prepare for charging in advance, and avoid running out of power in the middle. The built-in circuit breaker protector can protect the wiring and power supply well.
• WIDE FITThis trolling motor package includes: 1* trolling motor, 1* power propeller, 1* circuit breaker protector, 1* battery clip, 1 set of screws, 1* English manual. This trolling motor is suitable for all kinds of small boats, such as fishing boats, rubber boats, inflatable boats, etc.

Installation

1. Tear off the sticker at the spring on the handle.

2. Take out the handle, and align the handle with the interface at the inner shell of the handle.

3. Press the handle spring with one hand and push the handle in with the other hand. After a crunching sound is heard, the handle is installed.

4. Take out the cylindrical card pin and insert it into the round hole of the drive rod (note that the length of both ends needs to be consistent).

5. Align the back of the propeller with the card slot and the card pin horizontally, and then tap into the propeller with force.

6. Put in the card flap, then screw the nut to complete the installation.

7. Take the fins out of the box and insert them into the fin slot.

8. Put the included screws into the screw holes of the fins and put the nuts into the other end. Hold them down.

9. Then tighten the screws with the Phillips screwdriver.

10. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Package Included

1*Trolling Motor

1*Power Propeller

1* Circuit Breaker Protector

1*Battery Clamp

1 Set of Screws

1*English Manual

Notes

Please read the attached manual completely before use. And pay particular attention to the safety instructions included.
Don't start the motor on the bank. If you want to test the motor, it should be done in the river.
Don't use the motor when no water comes out of it, and then check whether the pump impeller or the water outlet is blocked.
Do not switch gears too quickly. You should switch from one gear to another.
Be sure the switch is in the OFF position before
