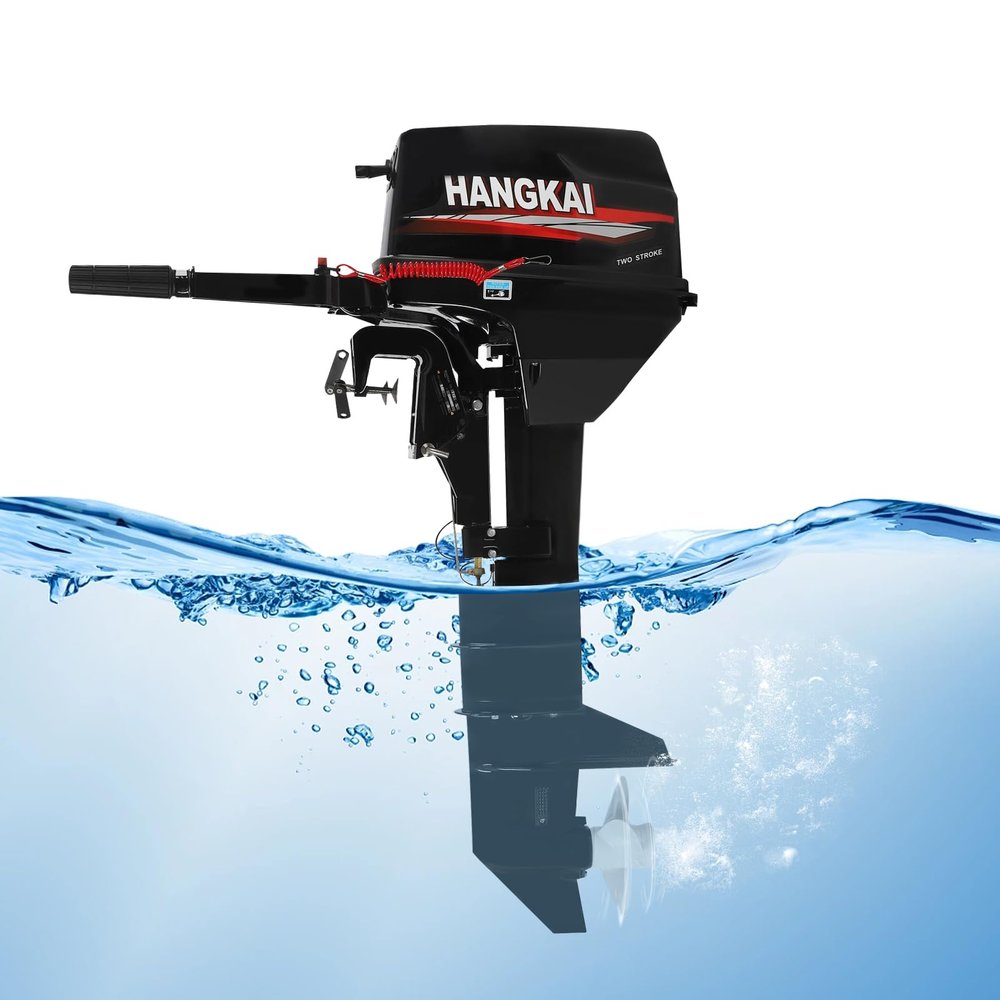

169CC 2-Stroke HANGKAI Outboard Motor, 12 HP Outboard Boat Motor Water Cooling & CDI ignition System, Gasoline Power Heavy Duty, Inflatable Outboard Motor Marine Engine Manual Start Max 5500RPM

Description

• High-quality Material: High-quality aluminum alloy has high hardness, corrosion resistance, and rust resistance, and is not easy to bend, so it can serve you for a long time.
• Strong Power: 2-stroke 12hp engine (4500 to 5500rpm) and 8.8kw max. power provide strong power for you to drive fast and save a lot of time and energy.
• Excellent Load-bearing Capacity: With solid aluminum alloy material and a powerful engine, the hangkai outboard motor has a maximum load of 2204 pounds to meet different needs. (The heavier the load, the slower the speed)
• Excellent Endurance: Low fuel consumption, efficient two-stroke motor, and large capacity fuel tank (6.34 gallons) provide you with 5-6 hours of endurance to meet the needs of short/long distance travel.
• Excellent Heat Dissipation: Many cooling holes and water cooling systems provide excellent heat dissipation to prevent the 12 hp outboard motor from burning out after a long time of use.

Application
This outboard motor is suitable for small ships with different materials(width less than 4.9 feet and length less than 19.7 inches), such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery, aquaculture, outdoor exploration, etc.

Gear Oil Filling Method
There is a screw on the gearbox, unscrew the screw to add gear oil. Each machine will be filled with gear oil before leaving the factory, so it does not need to be refilled when it is used for the first time. After that, add according to personal use, and check every ten hours.

Specification
Material: Aluminum Alloy
Color: Black
Model: 12HP Horsepower Long Axis
Displacement: 169CC
Gear Ratio: 2.08 (27:13)
Number of Cylinders: 2
Speed: 4500-5500RPM
Gear: F-N-R
Refueling Method: 92 Unleaded Gasoline is Recommended
Maximum Power: 8.8kw
Oil Tank Capacity: 24L/6.34gal
Endurance: 5-6h
Max. Load-bearing Capacity: 1000kg/2204lbs
Ignition System: CDI
Cooling System: Water Cooling
Control System: Tiller Control
Start System: Manual Start
Suitable Stern Plate Height: 45cm-55cm/17.7*21.7in
Propeller Specification: 23.5cm/9.25in (Length) * 20.3cm/8in (Diameter)
Cylinder Diameter * Stroke: 50mm/2in * 43mm/1.7in
Recommended Engine Oil: 2 Stroke Engine Oil
Mixing Ratio: Fuel: Oil = 50:1
Trim and Tilt System: Manual Tilt
Net Weight: 32kg/70.5lbs
Gross Weight: 34kg/75lbs
Package Size: 70.5*37.5*120cm/27.8*14.8*47.2in
Product Size: 87.3*33.2*104cm/34.4*13.1*40.9in

Package Included
1x Outboard Motor
1x Flameout Rope
1x Oil Pipe
1x Sealing Ring
1x Paper Pad
1x Spark Plug
1x Start Rope
1x Water Pump Impeller
1x Cotter Pin
1x Fuel Tank
1x English Manual
Other Tools

Notes
1. The two-stroke outboard must use a mixture of No. 92 gasoline and two-stroke engine oil.
2. The volume ratio of gasoline and oil during the running-in period of the new machine is 25:1.
3. After the running-in period, the volume ratio of gasoline and oil is 50:1.
4. Special attention: gasoline and engine oil must be pre-mixed and stirred evenly, and then poured into the fuel tank.
5. The outboard motor must be started in water, do not start the engine on shore.
6. Loosen the vent screw on the fuel tank cover counterclockwise when starting.
7. When the outboard motor is started, the emergency flameout rope should be inserted, and the other end should be placed on the wrist or belt.
8. The running-in period is about 10 hours or a month, and during the running-in period, do not drive with a high accelerator.
9. Replace the gear oil after the running-in period, and the second replacement time is after 100 hours or about six months.
10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
