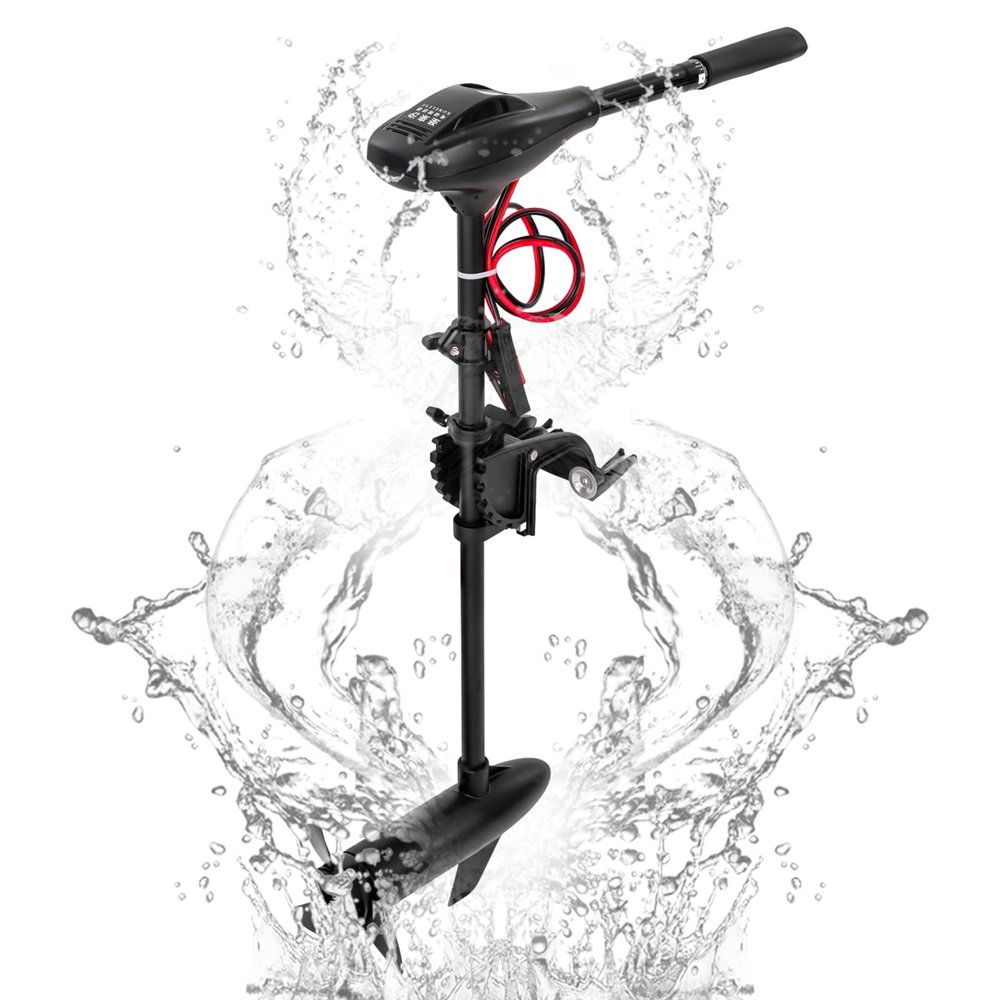

40lb Thrust Transom Mounted Electric Trolling Motor Outboard Engine Fishing Boat Engine Trolling Motor F5-R2 408W 12V

Description

• Great Durability: The trolling motor is made of pure copper, which has excellent electrical conductivity, thermal conductivity, ductility and corrosion resistance, the trolling motor with a pure copper motor can overcome huge water resistance to increase the speed of driving and improve its efficiency.
• Non-deformable: The suspension bracket is made of high-strength aluminum alloy, which can ensure that the bracket is not deformed by repeated disassembly and installation, the main rod is made of aluminum. Its lightweight will not increase the entire weight of your boat and the difficulty of driving.
• Fin Streamline Design: When it collides with an object underwater, the design can protect the propeller that is running at high speed, Its depth and angle can be freely adjusted according to the actual situation and your special needs.
• Adjustable Gears: The fixed tiller has 5 forward and 3 reverse speeds. Its gears can be freely adjusted according to the actual situation and your special needs.
• Tightened Brackets: The tightened brackets are used to secure the thrusters and transoms of the ship so that the thruster will not fall from your boats.

Note
The Battery Is Not Included
Please Read the Instruction Before You Use It
Do Not Shift Too Fast, You Need to Switch One by One.

Specifications
Brandsunelexe
Modell40
ThrustKg:30
Speed Control: F5-R2
Motor Type: Brush Motor
Rated Voltage(V):12
Rated Speed(R/Min):1700
Rated Current(a):34
Rated Power(W):408
Control Handle: Telescopic Type
Maximum Speed(Km/H):6
Noise Db:50db
ThrustKg:It Is Recommended to Propel Small Boats Weighing less than 200kg
N.w./G.w.(Kgs)7.8/9.317.2/20.5lb N.w./G.w.(Kgs)9/10
Propeller Model(in):3 Leaves/9
Packing Size(Cm):102*41*16cm (40.16*16.14*6.30inch)
Battery Model Recommendation:
Choose 12v 100a Batteries, the Maximum Power of 3 Hours of Sustainable Operation.

Package Include:
1x Trolling Motor
1x Operation Manual
Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.

Don't do the following will avoid cylinder Scoring:
1.start the motor on bank
2.use the motor when it stop coming out of water
Even if you want test the motor, it should be done in the river!
When there is no water coming out from the motor,please stop using it immediately ,then check the impeller of Water pump or check if the water outlet has been blocked.
