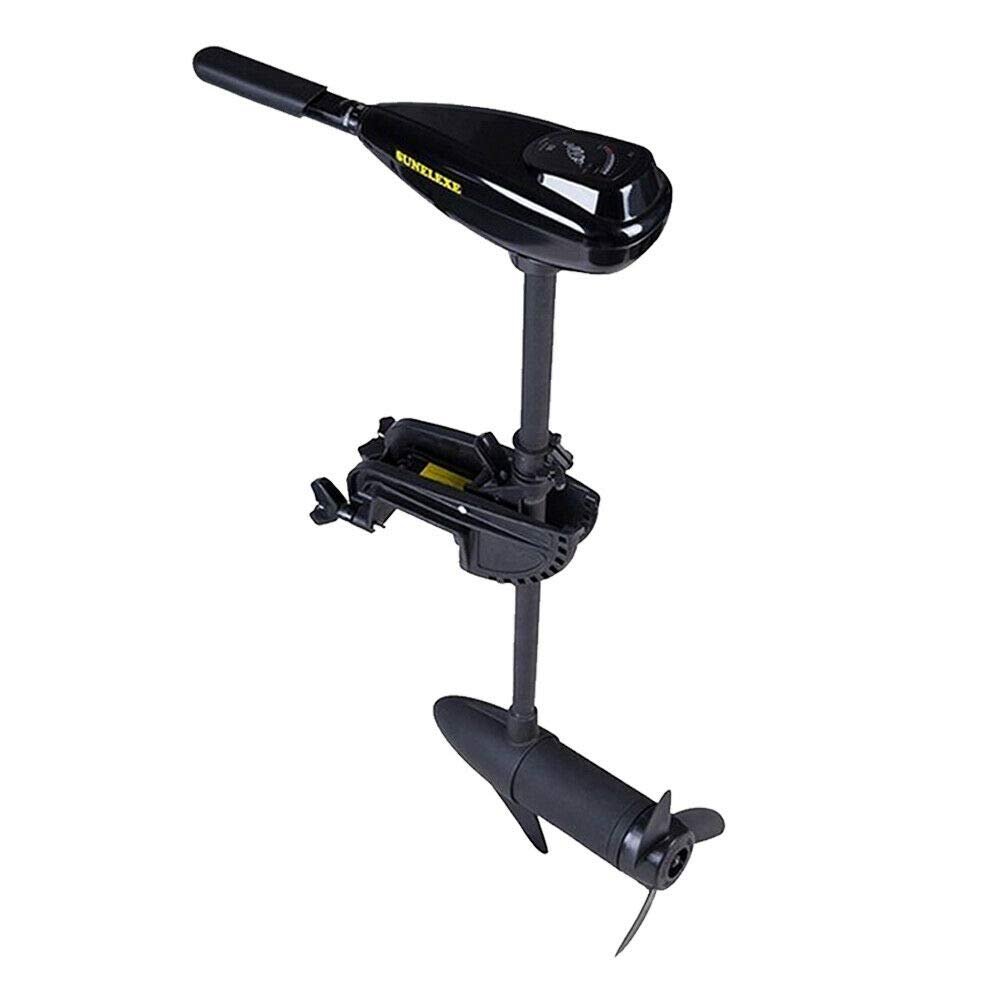

Eapmic 40lbs 12V Electric Outboard Motor Inflatable Fishing Boat Engine Kaboats, Kayaks and Canoes F5-R2 Control (40lbs)

Description

• 40lbs Electric Trolling Motor Unique short-shaft trolling motors designed for inflatable boats, KaBoats, kayaks, canoes. Adjustable angle throttle handle.
• 40lbs power thrust, 12V. Adjustable Depth Collar - for changing the motor depth. Adjustable Handle - Adjust to your desired angle by folding up or down.
• Special Composite Shaft - More flexible and stronger than other shafts. Extendable Handle, for much better control.
• NoteThe battery is not included, please read the instruction before you use it.
• Non-deformable: The suspension bracket is made of high-strength aluminum alloy, which can ensure that the bracket is not deformed by repeated disassembly and installation.

Specification:
Model: L40
Speed Control: F5-R2
Motor Type: Brush Motor
Rated Voltage(V): 12
Rated Speed(R/min): 1700
Rated Current(A): 34
Rated Power(W): 408
Control Handle: Retractable
Maximum Speed(km/h): 6
Noise: 50db
Battery Model: 12V 100A Batteries
Net Weight: 7.8kg/17.2lbs
Gross Weight: 9.3kg /20.5lbs
Propeller Model: 3 Leaves, 7.6*22.9cm/3*9in
Rod Length: 76cm/30inch
Package Size: 102*41*16cm (40.16*16.14*6.30inch)
Installation:
1. Tear off the sticker at the spring on the handle.
2. Take out the handle, and align the handle with the interface at the inner shell of the handle.
3. Press the handle spring with one hand and push the handle in with the other hand. After a crunching sound is heard, the handle is installed.
4. Take out the cylindrical card pin and insert it into the round hole of the drive rod (note that the length of both ends needs to be consistent).
5. Align the back of the propeller with the card slot and the card pin horizontally, and then tap into the propeller with force.
6. Put in the card flap, then screw the nut to complete the installation.
7. Take the fins out of the box and insert them into the fin slot.
8. Put the included screws into the screw holes of the fins and put the nuts into the other end. Hold them down.
9. Then tighten the screws with the Phillips screwdriver.
10. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Package Included:
1*Trolling Motor
1*Power Propeller
1* Circuit Breaker Protector
1*Battery Clamp
1 Set of Screws
1*English Manual
