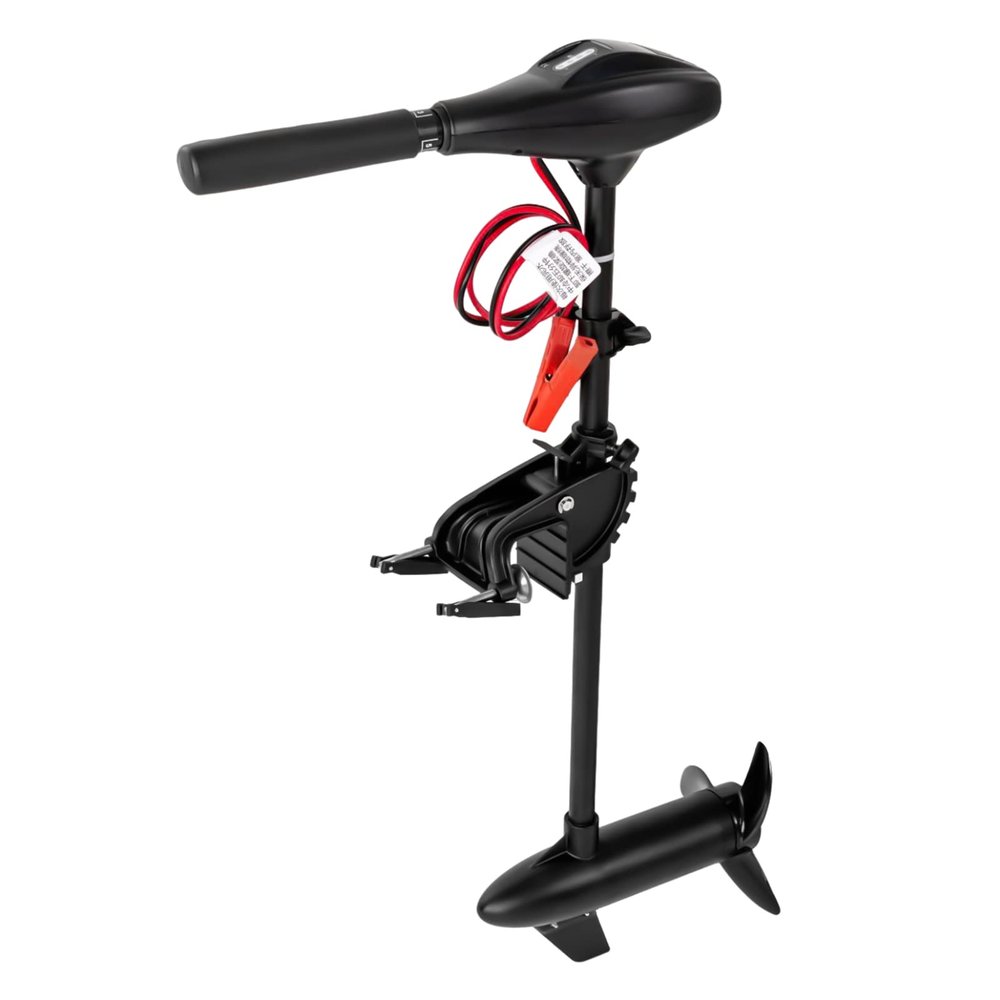

Electric Outboard Trolling Motor,Kayak Series Thrust Transom Mounted Saltwater Electric Trolling Motor Fishing Boat Engine (40lb Thrust)

Description

• Efficient Power: 40lb Thrust - this 12v electric trolling motor provides excellent power and efficiency for any boater. The high quality build allows the motor to run all day long without overheating, or making noise to spook fish.
• Features: This motor features a 30 inch shaft, and 3 blade propeller. The mount angle, height, and direction can all be adjusted and locked into place when needed.
• Speed: Speed Control: F5-R2, 5 forward & 2 reverse and is designed for trolling, so top speed of motor is about 3.7mph, speed depends on your boat shape, weight, water, wind, & other factors.3 Blade Propeller has great low end torque to get boat moving.
• Recommended battery model: 12v100AH battery, you can buy it at a local store that sells batteries.
• Application It is suitable for various styles of small watercraft, such as kayaks, canoes, dinghies, and inflatable boats. If you have any questions, please contact customer service (Arraige), we will solve your problem within 24 hours.

Specification
Model: L40
Speed Control: F5-R2
Motor Type: Brush Motor
Rated Voltage(V): 12
Rated Speed(R/min): 1700
Rated Current(A): 34
Rated Power(W): 408
Control Handle: Retractable
Maximum Speed(km/h): 6
Noise: 50db
Battery Model: 12V 100A Batteries
Net Weight: 7.8kg/17.2lbs
Gross Weight: 9.3kg /20.5lbs
Propeller Model: 3 Leaves, 7.6*22.9cm/3*9in
Rod Length: 76cm/30inch
Package Size: 102*41*16cm (40.16*16.14*6.30inch)

Installation
1. Tear off the sticker at the spring on the handle.
2. Take out the handle, and align the handle with the interface at the inner shell of the handle.
3. Press the handle spring with one hand and push the handle in with the other hand. After a crunching sound is heard, the handle is installed.
4. Take out the cylindrical card pin and insert it into the round hole of the drive rod (note that the length of both ends needs to be consistent).
5. Align the back of the propeller with the card slot and the card pin horizontally, and then tap into the propeller with force.
6. Put in the card flap, then screw the nut to complete the installation.
7. Take the fins out of the box and insert them into the fin slot.
8. Put the included screws into the screw holes of the fins and put the nuts into the other end. Hold them down.
9. Then tighten the screws with the Phillips screwdriver.

Package Included
1*Trolling Motor
1*Power Propeller
1* Circuit Breaker Protector
1*Battery Clamp
1 Set of Screws
1*English Manual

Notes
The battery is not included in the package.

Please choose 12V 100A battery so that the maximum power can be guaranteed for 3 hours of continuous operation.
