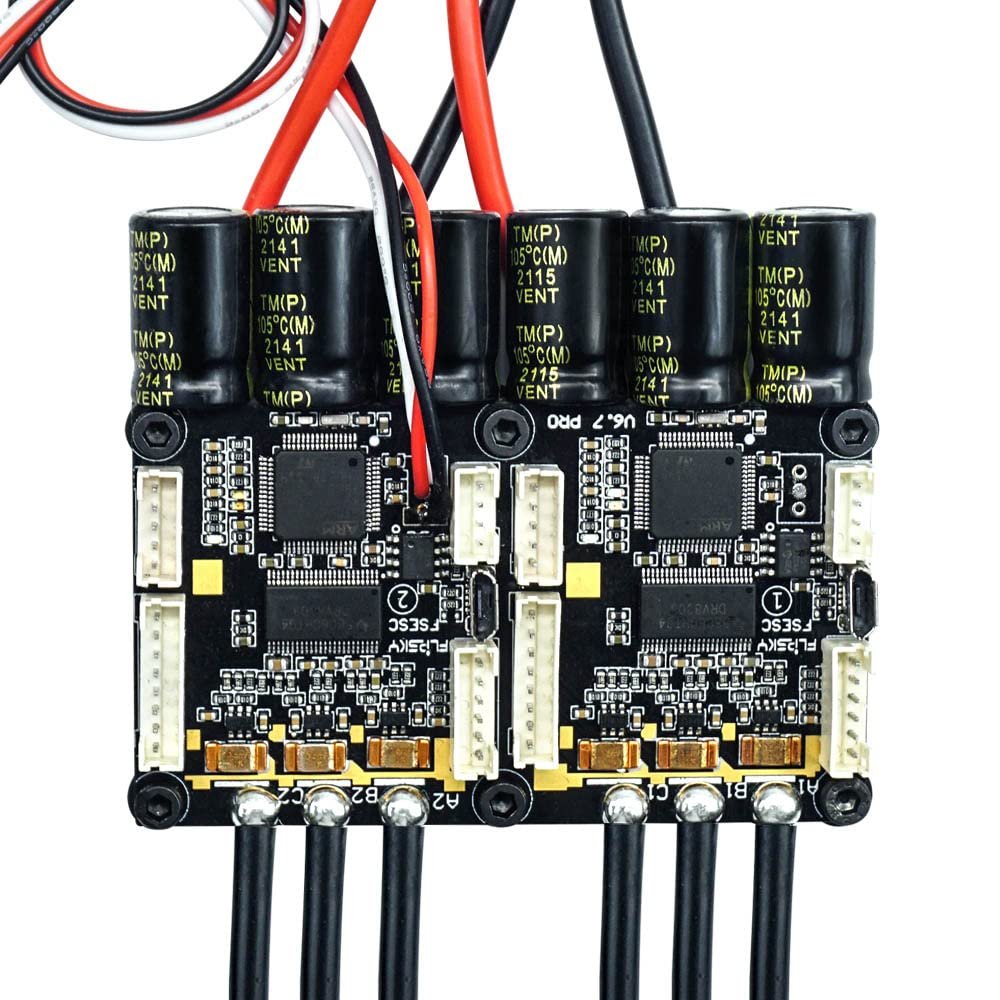

FLIPSKY Dual Electric Speed Controller for Skateboard FSESC6.7 140A Base on VESC6.6 with Aluminum Anodized Heat Sink

Description

• More Control Modes:Support four control modes: Current/Dutycycle/Speed /Position control mode.
• Upgrade Performance:Latest Version Firmware,support rich control interface and sensors,programmable.Warm tips: It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
• Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
• Continuous current: 140A; instantaneous current: 400A.Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! ).
• Size:79.8*66.8*17.8mm.Widely applications:e-skateboard,ebike,scooter,robot etc.
• Top Service: If there are any question or need help , just feel free contact us , we will always here help you out within 24 hours.

Warm tips:It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Specs: Firmware: Latest Version. Continuous current: 140A; instantaneous current: 400A Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! ) BEC: 5V@1A ERPM: 150000 Control Interface Ports:USB,CAN,UART,SPI, IIC Supported Sensors:ABIHALLAS5047AS5048A Input Set Support:PPM, ADC, NRF, UART Modes:DC, BLDC, FOC (sinusoidal) Regenerative capacity: Yes Programmable: Yes Motor wire: 12AWG Power cable:14AWG (with XT90 connector) Size:79.8*66.8*17.8mm

Feature: Support four control modes: Current/Dutycycle/Speed /Position control mode. Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
