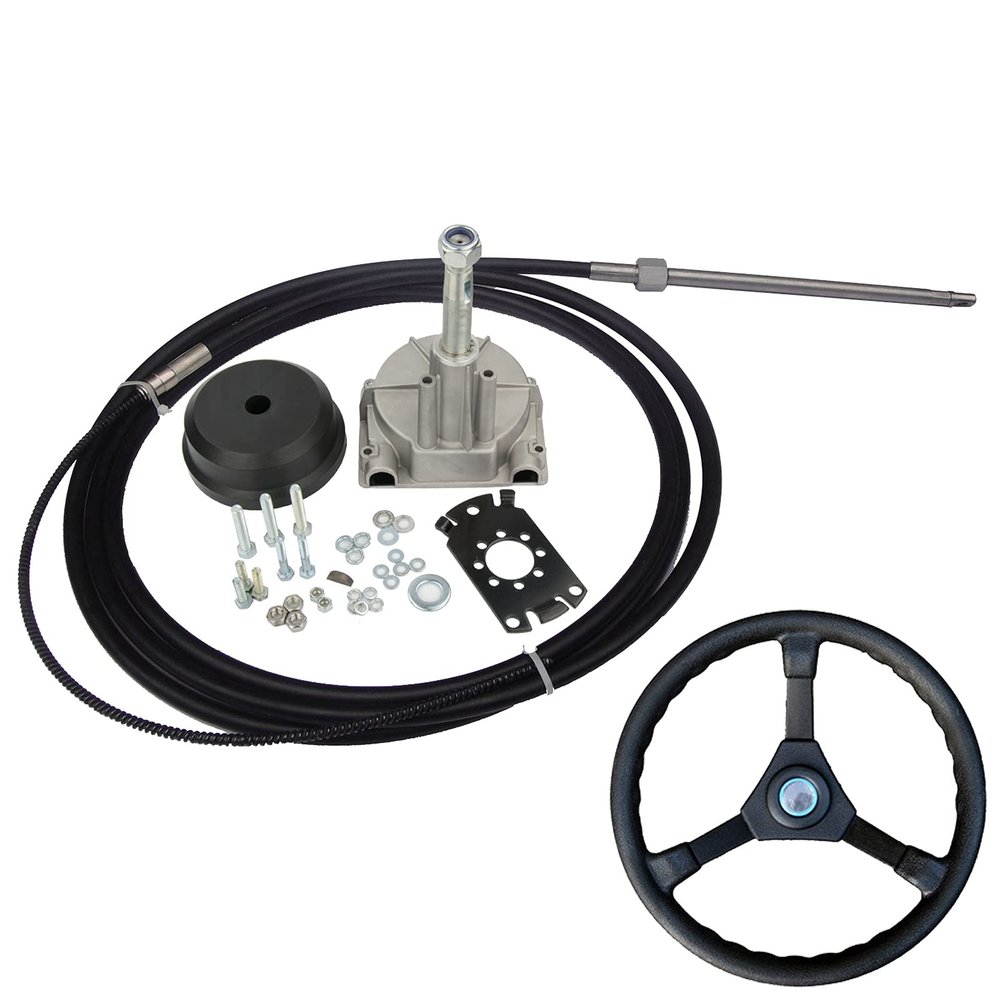

Outboard Steering System,Marine Turbine Rotary Steering System Outboard Boat Steering Kit with 13.5" Steering Wheel and Steering Cable Rotary Helm 3/4" Tapered Shaft 90 Bezel Fixing Kits (10FT)

Description

• PREMIUM MATERIAL- Made of cast steel and 304 stainless steel seamless pipe and corrosion-resistant materials, this steering kit is durable and steady. The rotary helm is well welded and polished with a moderate size. The cable is made of stainless steel and premium rubber to ensures the surface from corrosion, rust, cracking, and leakage and maintains the fittings' gloss.
• COMPLETE ACCESSORIES- It comes with a 13.5" steering wheel,Rotary Helm,Standard 3/4" tapered steering shaft;10 FT Steering Cable, Hardware, 90 Degree Bezel Kit.
• SIMPLE INSTALLATION- With complete accessories and instruction, the marine steering kit is easy and quick to assemble as you don't have to configure the parts separately. Besides, a simple snap-in cable connection and different mounting hardware are provided to ensure fast installation.
• Labor-savingThis boat steering system is designed to minimize the effort on you to steer the boat and allowing the boat to steer accurately, to make sure that you have a pleasant boating experience every time you use it.
• WIDE APPLICATION- Designed and developed especially for marine use.This outboard steering kit is Suitable for mechanical/manual steering for yachts, fishing boats,electric push boats and other waterborne vehicles.Widely used for boats up to 24' and steering wheels up to 16".

STEERING HELM:
A gearbox arrangement mounted on the dashboard of the boat.On the shaft of the helm is mounted the Steering Wheel.
Max load 300 pounds at tiller
Gear design:3 turns lock to lock
Max steering wheel dia 406mm (16")
Shaft Length: 125mm
5-30 feet length control cable can be used, and increase per 1ft increments.
STEERING CABLE:
The Steering Cable is a push pull mechanical cable which convents the rotary motion of the helm to linear motion at the engine/rudder.One end of the cable is connected to the helm & the end to the rudder.The latest construction technology, the internal control line used elastic material.Output used 304 stainless steel seamless pipe and corrosion-resistant materials, control lines has longer life.
Output ends made of 316 Stainless Steel
Flat Interface: Special flat interface design and wide area of force make the marine steering system kit better and firmer.
Adjustable Screw:With adjustable screws, you can adjust it according to your own need.
Maximum Trave:9inch(225mm)
Minimum bend radius:8 inch (200mm)
Maximum working load at Tiller end:5000N
Cable Outer Diameter:16.5mm
Spiral inner cable Diameter:8mm
Bezel Kit:
a plastic part along with related hardware which is mounted between the steering wheel and dash board to cover the helm hardware.
Bezel made from Engineering Plastic;
90 degree tilt
13.5" Steering Wheel:
Anti-aging, corrosion-resistant, high-density, high-quality plastic. Anti-slip wave design, more durable.
PACKAGE INCLUDED:
1 x Steering Helm
1 x 10 FT Steering Cable
1 x Bezel Kit
1 x 13.5" Steering Wheel
1 x Instruction
