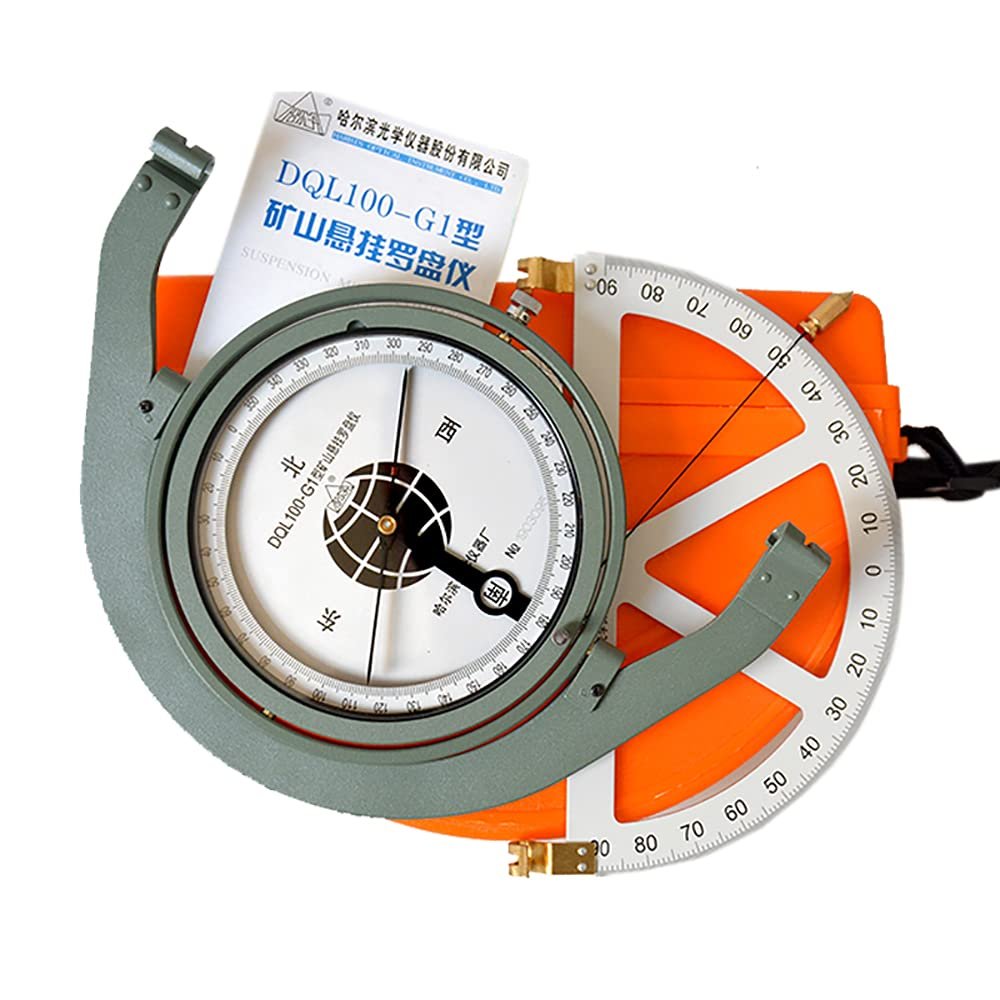

Jieotwice DQL100-G1 Mine Hanging Compass with Tilt Gauge Suspended Mining Compass Plastic Gradiometer Antimagnetic

Description

• DQL100-G1 mine hanging compass is used as a mine auxiliary measuring instrument.
• The instrument is mainly used for the measurement of the magnetic azimuth of the secondary roadways and the mining face in the mining area and the inclination angle of the wire edge of the compass.
• DQL100-G1 mine hanging compass is composed of four main parts: bent arm bracket group, ring frame group, compass box group and magnetic needle group.
• The first three form a universal bracket, which can balance the compass box in any direction.
• This series of products are mainly used for measuring direction, tendency, inclination, fixed azimuth, right angle, horizontal, vertical angle and mileage. It is suitable for geological survey, mining of coal mines and non-ferrous metal mines, etc.

DQL100-G1 Mine Hanging Compass with Tilt Gauge Suspended Mining Compass Plastic Gradiometer Antimagnetic

Description:
1. DQL100-G1 mine hanging compass is used as a mine auxiliary measuring instrument.
2. The instrument is mainly used for the measurement of the magnetic azimuth of the secondary roadways and the mining face in the mining area and the inclination angle of the wire edge of the compass.
3. DQL100-G1 mine hanging compass is composed of four main parts: bent arm bracket group, ring frame group, compass box group and magnetic needle group.
4. The first three form a universal bracket, which can balance the compass box in any direction.

Specification:
Product name: Mine Hanging Compass
Model: DQL100-G1
Color: Olive green
Material: Metal
Plate surface diameter: 110MM
Size: 240x175MM (diameter of the plate surface 110 mm)
Net weight: 500G

Package included:
1 x Set of Mine Hanging Compass
