350W 8 Inch Homemade Scooter Hub Motor Kit With Drum Brake Brushless Motor Wheel And Thumb Throttle LCD Screen Display (36V 350W kit)

Description

• High Power Motor: 350W brushless motor provides fast and efficient power for speed and performance.
• Durable Construction: Solid rubber tires and sturdy aluminum frame ensure reliable operation and longevity.
• User-friendly Features: Thumb throttle and LCD screen allow for easy speed control and monitoring.
• Safety Brakes: Drum brake system provides reliable stopping power and safety.
• Compact Size: 8 inch wheel size and lightweight design make this scooter easy to maneuver and transport.

350W 8 Inch Homemade Electric Scooter Hub Motor Kit With Drum Brake Brushless Motor Wheel And Thumb Throttle LCD Screen Display

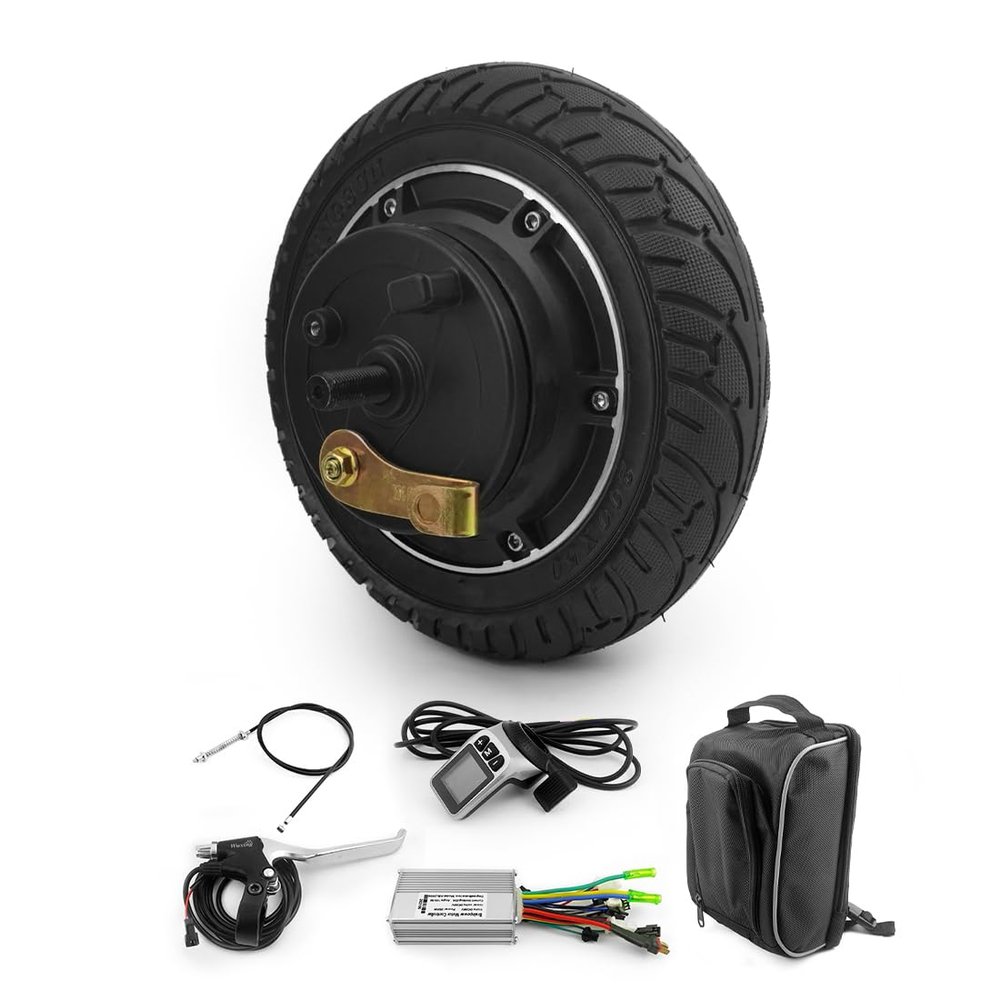

The kit includes:
1). 1x 8 inch 350W motor wheel
2). 1x Controller
3). 1x Thumb throttle with LCD display
4). 1x Electric brake lever
5). 1x Bag (no battery)
6). 1x Brake cable 180cm
7). Some cable ties and pipe

Note: this kit without battery and battery charger .
---------------------------------
This is a 8" brushless hub motor for electric scooter .
It is a gearless brushless hub motor. It is designed for high speed electric scooter or other high speed electric vehicles.
This motor with hall sensor, and its current power is 350W.

Motor specification
Model: YY-08
Voltage: 24 / 36 / 48 Volt
Output: 350 Watt
Max speed: 30 KM/H
Rated Efficiency: 79%
Rated Current: 14.5A / 9.8A / 7.3A
Max Torque: 11 N.m
Max Loading: 75 KG
Wheel Size: 8 inch (outer diameter about 200mm)
Net Weight: 3.2 KG
Wuxing brand thumb throttle with LCD display:
Controller :
Wuxing brand electric brake lever:
(left side or right side, send at random, or please leave a message for your request)
Battery bag:
(outer dimension is about 215x15x95 mm, fit the battery dimension 200x150x85 mm)
Cable ties and pipe:
8-inch motor wheel installation for reference only:
