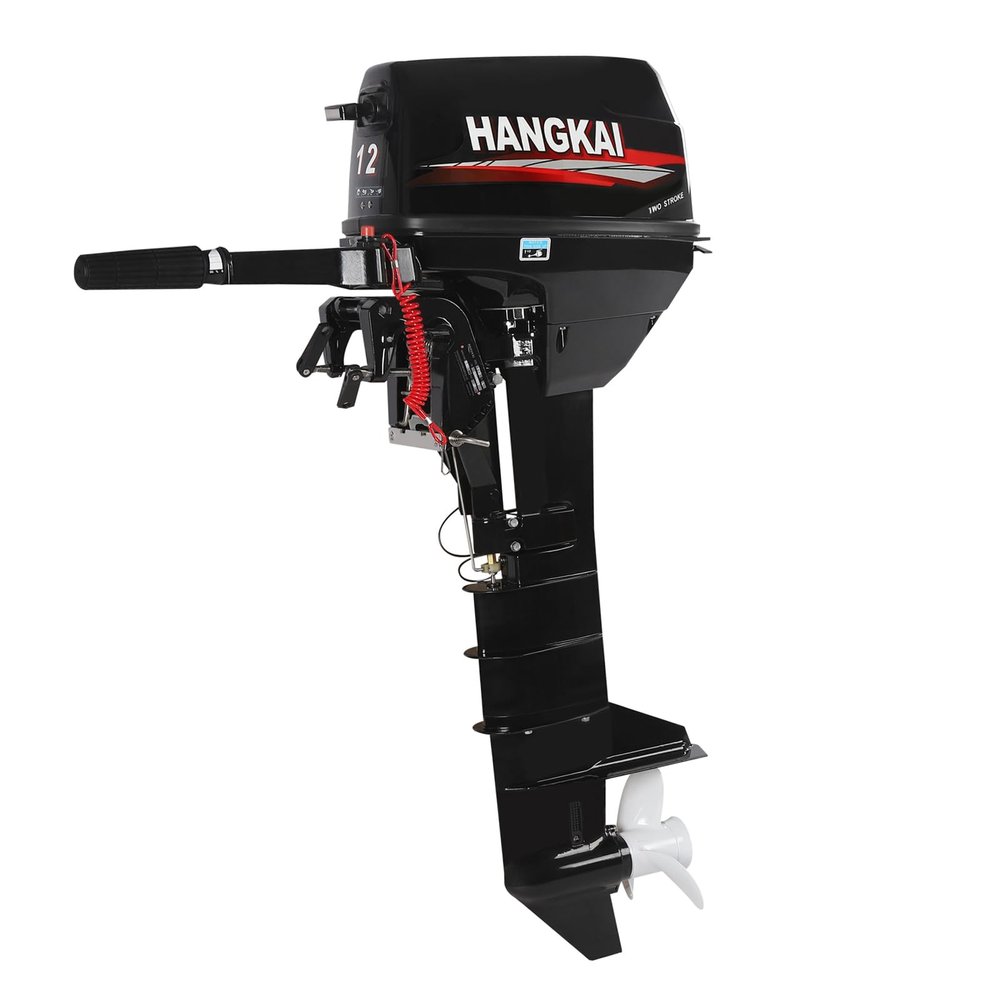

Liffshsy Long Shaft 169CC 12HP Outboard Motor Boat Engine, 2-Stroke Double Cylinders CDI Gas Powered Outboard Engine with Water Cooling System Heavy Duty Fishing Boat Motor

Description

• Strong Power: 2-stroke 12hp engine (4500 to 5500rpm) and 8.8kw max. power provide strong power for you to drive fast and save a lot of time and energy.
• Flexible Steering: Forward, neutral and reverse gears, and a 360-degree steering function allow you to flexibly control the direction of the ship.
• Excellent Load-bearing Capacity: With solid aluminum alloy material and a powerful engine, the outboard engine has a maximum load of 2204 pounds to meet different needs. (The heavier the load, the slower the speed)
• Excellent Endurance & Heat Dissipation: Low fuel consumption, efficient two-stroke motor, and large capacity fuel tank (6.34 gallons) provide you with 5-6 hours of endurance to meet the needs of short/long distance travel.In addition, many cooling holes and water cooling systems provide excellent heat dissipation to prevent the engine from burning out after a long time of use.
• Easy Speed Regulation & Operate: Stepless speed change and constant speed cruise function make it easy for you to adjust the running speed and stable navigation at a constant speed.Besides, the manual start function allows you to operate easily by pulling the start rope and opening the speed switch on the handle. Its long non-slip handle(20 inches in length) is easy to grasp. The red stop button allows you to stop the engine by pressing it for a few seconds.

Description
The outboard engine used two-stroke motor, flexible steering, easy operation let you sneak up on fish, outdoor adventure, etc. with the best speed and low noise.
Gear Oil Filling Method
There is a screw on the gearbox, unscrew the screw to add gear oil. Each machine will be filled with gear oil before leaving the factory, so it does not need to be refilled when it is used for the first time. After that, add according to personal use, and check every ten hours.

Specification
Material: Aluminum Alloy
Color: Black
Model: 12HP Horsepower Long Axis
Displacement: 169CC
Gear Ratio: 2.08 (27:13)
Number of Cylinders: 2
Speed: 4500-5500RPM
Gear: F-N-R
Refueling Method: 92 Unleaded Gasoline is Recommended
Maximum Power: 8.8kw
Oil Tank Capacity: 24L/6.34gal
Endurance: 5-6h
Max. Load-bearing Capacity: 1000kg/2204lbs
Ignition System: CDI
Cooling System: Water Cooling
Control System: Tiller Control
Start System: Manual Start
Suitable Stern Plate Height: 45cm-55cm/17.7*21.7in
Propeller Specification: 23.5cm/9.25in (Length) * 20.3cm/8in (Diameter)
Cylinder Diameter * Stroke: 50mm/2in * 43mm/1.7in
Recommended Engine Oil: 2 Stroke Engine Oil
Mixing Ratio: Fuel: Oil = 50:1
Trim and Tilt System: Manual Tilt
Net Weight: 32kg/70.5lbs
Gross Weight: 34kg/75lbs
Package Size: 70.5*37.5*120cm/27.8*14.8*47.2in
Product Size: 87.3*33.2*104cm/34.4*13.1*40.9in

Package Included
1x Outboard Motor
1x Flameout Rope
1x Oil Pipe
1x Sealing Ring
1x Paper Pad
1x Spark Plug
1x Start Rope
1x Water Pump Impeller
1x Cotter Pin
1x Fuel Tank
1x English Manual
Other Tools

Notes
1. The volume ratio of gasoline and oil during the running-in period of the new machine is 25:1.
