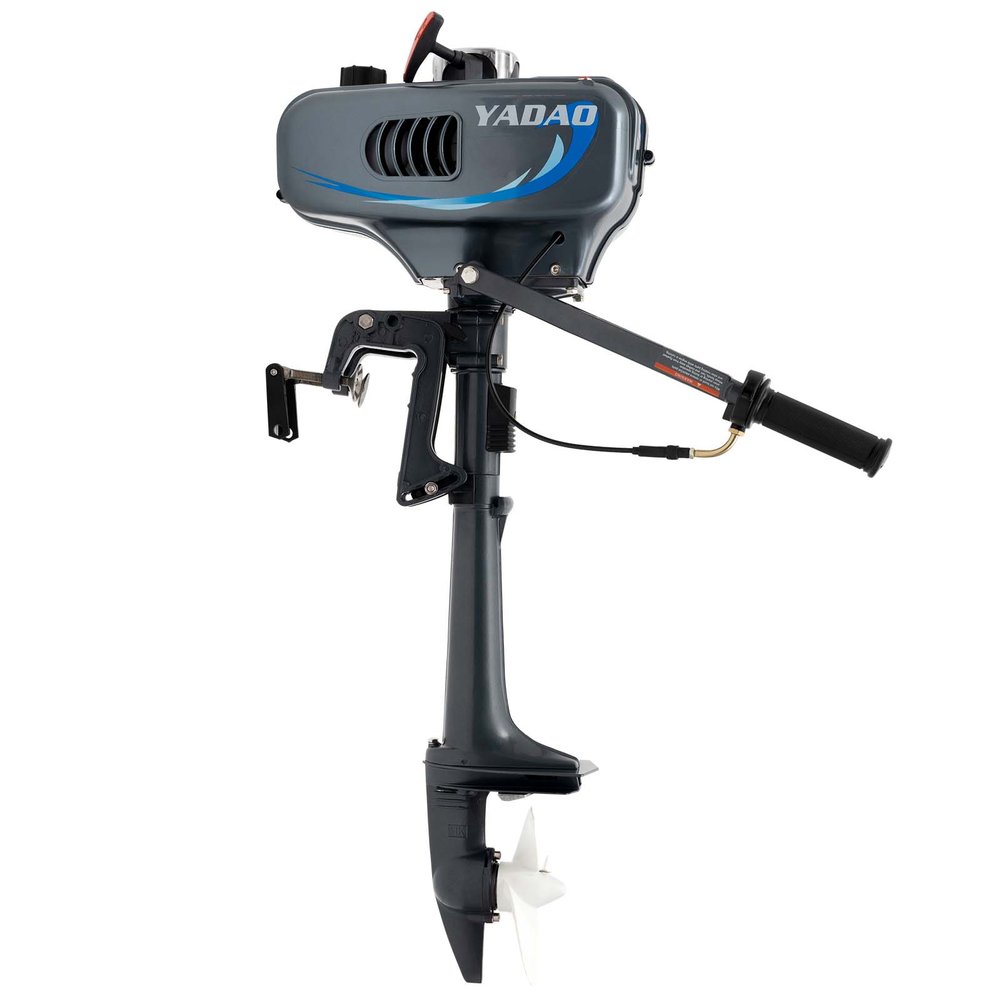

Outboard Motor, 2 Stroke 3.5HP Heavy Duty Outboard Motor Inflatable Fishing Boat Engine Water Cooling System CDI

Description

• 3.5 Hp 2-Stroke Outboard Motor Two strokes 3.5 hp are controlled by the handle, which is operated by the clutch. There is no Neutral, only idle mode or low speed mode.
• About the noiseAll the gasoline machines are noisy, currently we did not test the decibel , but the noise is the same as the motorcycle, so it is a normal phenomenon.
• LightweightThe machine itself is lightweight, it can use on boat weight of 100kg or less , load-bearing 4 people, but the speed is certainly not the same when one person on it or 4 people on it . Customer who has high expectations on speed, please be noticed.
• NecessaryYou have to prepare a boat-motor stand or Hanging board on your boat. It can be marched with inflatable boats, rubber boats or fishing boats.

Notice: Please add gear oil to the gears before use the motor and replace gear oil after the run-in period(10 hours).Our outboard motor doesn't with oil of gear,please prepair it by yourself .Keep in mind that you must add oil on the gear beofore use !!!



Description

Overall length:92CM

Overall widteh:36.5cm

Overall height:22cm

Transom height:42cm

Full throttle perating range:4000-5000r/min

Maximum output:2.5kw(3.5HP)

Speed:12km/h(four people)

Type:2-stroke

Short shaft 40cm

Ignition system:CDI system

Starting system:Manual start

Staring carburetion system:Choke start]

Propeller mark:7-1/45-A(inch)

The engine and the propeller ratio:2:1

Recommended fuel:Regular unleaded gasoline

Fuel to oil ratio: 35:1 Please be suject to this version, and disregard the manual about this point

Gear ratio: 27/13


Announcements

After in the sea water or turbid water cruising

1.Use the fresh water cleaning the outboard motor

2.With the moderate velocity circulating the engine,cool off the water chanel with fresh water.

3.Before completely running out cooling water,don't put the outboard motor outside. Otherwise the water cam pass the exhaust port to enter the air cylinder, from that will cause the engine breakdown.

4.The engine should deposit in the aridity and ventilated well place,avoid exposing directly in the sunshine.

5.Before the long term storing,you should run out of the gasoline in the fuel tank.
